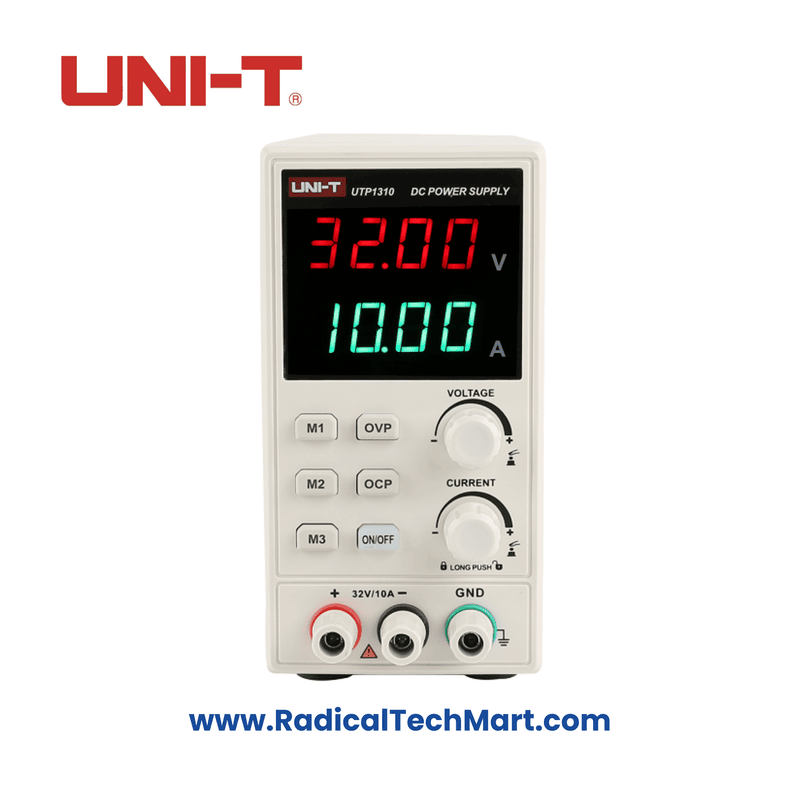

UNI-T UTP1310S DC Power Supply 32V 10A

The UTP1300 series power supply is an economical, switch-type, DC regulated power supply designed for diverse testing needs. It offers the following features and specifications:

• Single output with a voltage range of 0 to 32V and a current range of 0 to 10A.
• Output power: 320W.
• Resolution: 10mV (voltage) and 1mA (current).
• Over voltage/current protection with settable protection values.
• Three groups of one-key recall for stored data.
• Independent output switch for more control.
• Load regulation:
  • CV (Constant Voltage): <0.1% + 5mV.
  • CC (Constant Current): <0.2% + 3mA.
• Power regulation:
  • CV: <0.01% + 5mV.
  • CC: <0.2% + 3mA.
• Programming accuracy at 25°C ±5°C:
  • Voltage: <0.1% + 1 digit.
  • Current: <0.2% + 3mA.
• Ripple and noise (20Hz to 20MHz):
  • Voltage: ≤10mVrms.
  • Current: ≤5mArms.
• Display mode: LED voltage and current dual display.
• Power input: 110V AC/220V AC, 50Hz to 60Hz.
• Display type: EBTN LCD.
• Product color: White and grey.
• Dimensions: 80mm x 150mm x 230mm.
• Net weight: 2.5kg.

The UTP1300 series power supply is backed by a 1-year warranty and provides a reliable solution for various testing and laboratory applications.
